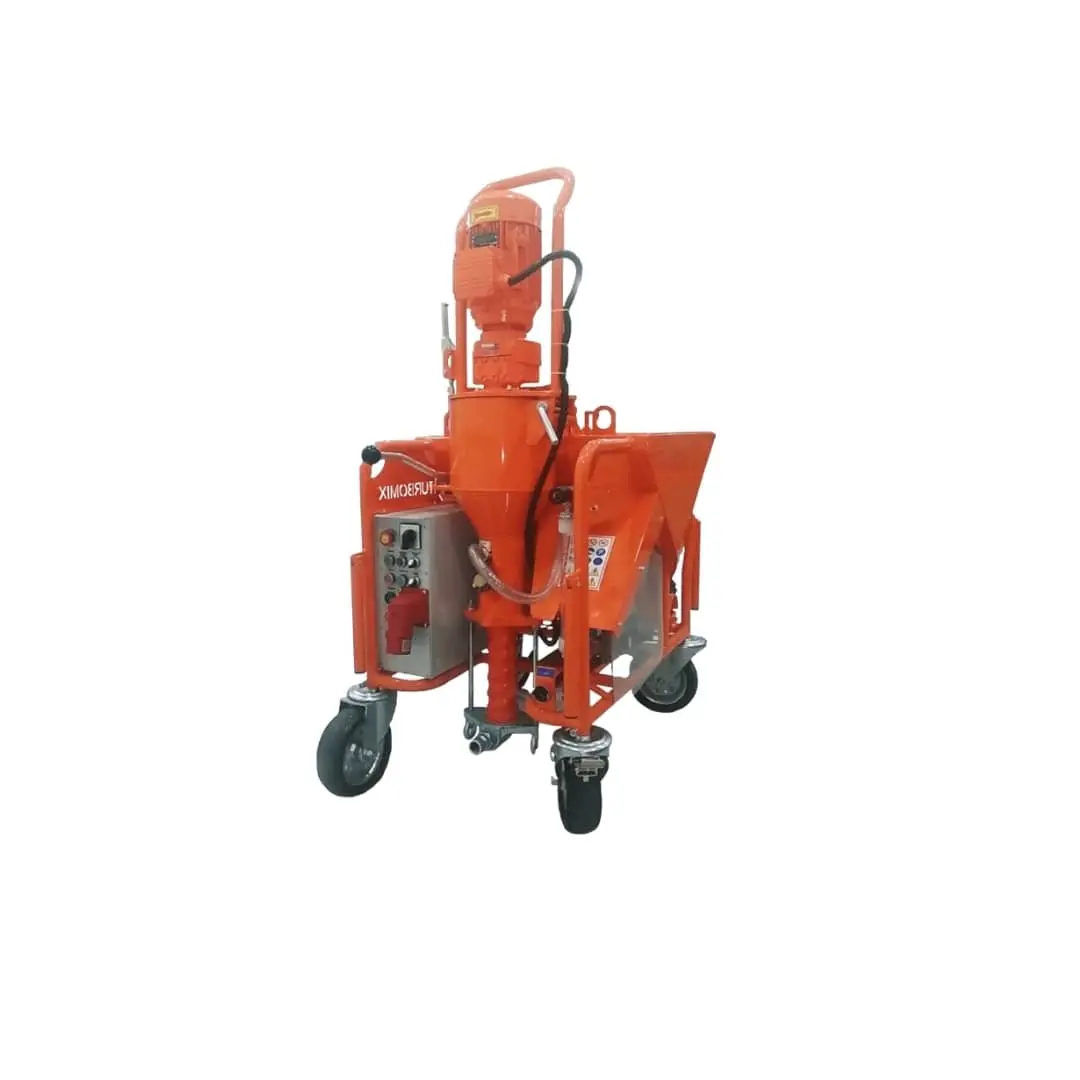

Used Gypsum Plaster Machine

Used Gypsum Plaster Machine General Information

Used and renewed gypsum plaster machine offers a cost effective solution without compromising on quality and efficiency. You can save time and labor in construction projects with our well maintained gypsum plaster machines.

Thanks to its compact design, it is easy to transport and with its high performance motor, it provides a homogeneous mix and continuous spraying.

It is an economical and practical choice for professionals looking for a reliable and affordable alternative.

Technical Specifications

• Pumping capacity: 22 l/min
• Pumping capacity (with a different pump): 32 l/min
• Stator rotor set: D6-3, D7-2.5, D8-2
• Pumping pressure: 30 bar
• Pumping distance (horizontal): 35 m (max)
• Power supply: 380 V, 50 Hz
• Pumping motor: 5.50 kW
• Mixing motor: 0.55 kW
• Electrical cable: 5*4 mm² TTR, 20 m
• Protection fuse: 3*32 A
• Water pump: 0.50 HP
• Water connection: 3/4"
• Compressor: 0.90 kW, 250 l/min, 6 bar
• Hopper capacity: 150 l
• Length: 1250 mm
• Width: 750 mm
• Height: 1620 mm
• Transport height: 950 mm
• Weight: 320 kg

Standard equipment

• Stator rotor set: D6-3
• Mortar hose: 40 bar, Ø 25 mm, 10 m, coupling
• Mortar hose gasket: 25 mm, 1 piece
• Air hose: Ø 10 mm, 16 m, geka coupling
• Water hose: 3/4", 5 m
• Water pump: 0.50 HP
• Flowmeter: 150 - 1500 l/min
• Spray gun: Ø 25 mm, Nozzle 14 mm
• Nozzle: 14 mm, 1 piece
• Electrical cable: 5*4 mm² TTR, 20 m
• Sponge ball: Ø 30 mm, 2 piece
• Compressor: 0.90 kW, 250 l/min, 6 bar
• Control panel
• Cleaning rod
• Mixer shaft
• Manual rotor dismantling apparatus

Application Areas

It is suitable for use with factory made dry pre mixed pumpable mortars of the types listed below:

• Gypsum based mortars
• Injection mortars
• Reinforcement and adhesive mortars
• Self spread screeds
• Lime - gypsum mortars
• Cement mortars
• Lime mortars
• Lime - cement mortars
• Fango materials
• Insulation plasters
• Embedment mortars
• Exterior base coat plasters
• Surface screeds
• Wall mortars
• Premix mortars (Pre mixed bag)
• Insulation materials
