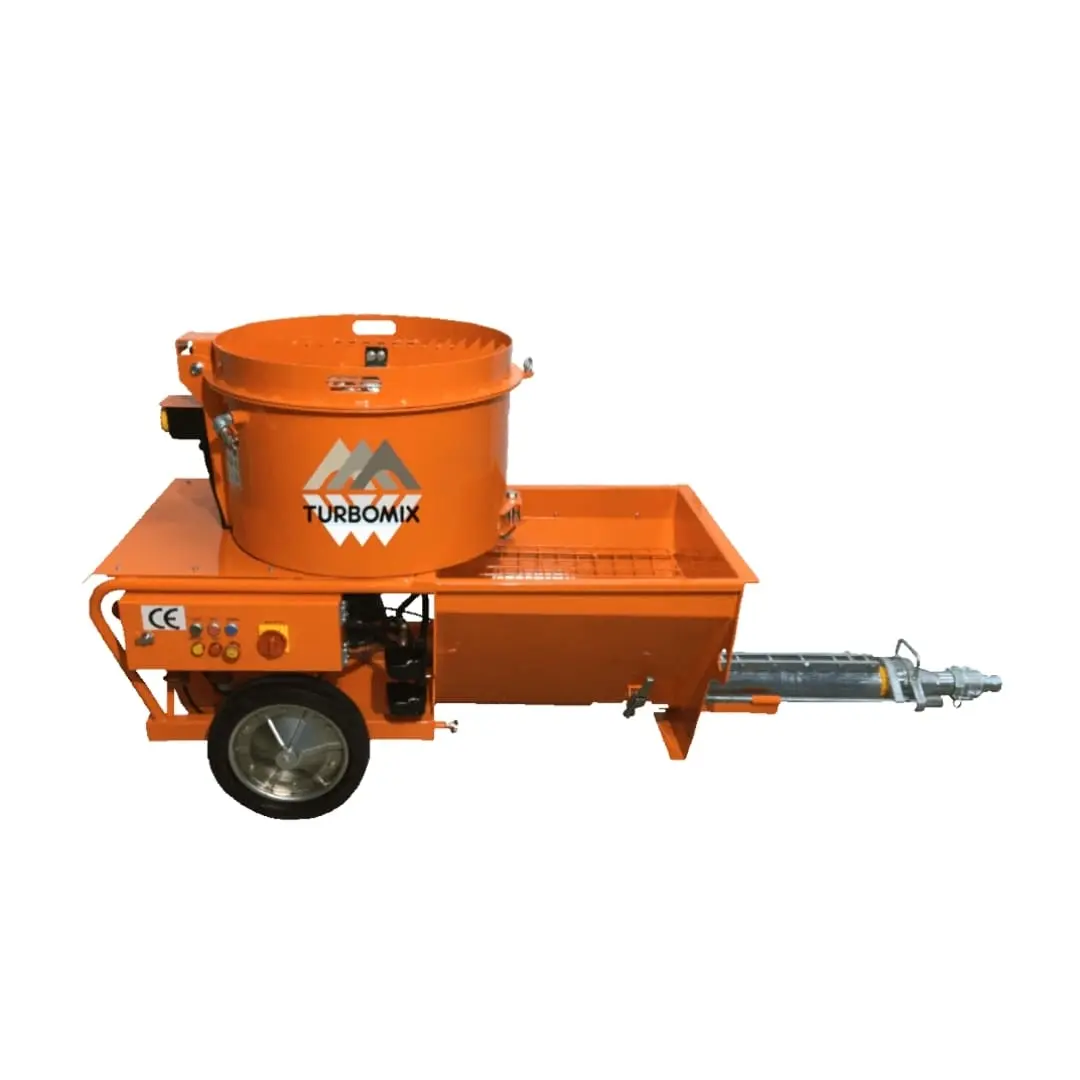

Turbomix 50 Mortar Plaster Machine

Turbomix 50 Mortar Plaster Machine General Information

Turbomix 50 is the preferred mortar plaster machine in the foreign markets. The reason for preferring is the use of economic and durable spare parts with the production of a wide service network and the production of experienced technical team. Developed chassis, rotor stator removal apparatus, pressurized washing machine used for optional cleaning, optional remote control system, operating card operating feature, wide tool box, installation from dust and water and enhanced automation system can be used for many years by providing ease of use in construction sites. Turbomix 50 is a superior performance classic mortar plaster machine that makes all kinds of sand, cement, lime, insulation or plaster based dry mixture materials continuously and fully homogeneously and pumping and spraying plaster.

Technical Specifications

• Pumping capacity: 70 l/min
• Pumping capacity (with a different pump): 70 l/min
• Stator rotor set: 2L6, 2L6 Plus, 2L6 Plus with clamp
• Pumping pressure: 25 bar
• Pumping distance (horizontal): 80 m (max)
• Pumping height: 30 m (max)
• Power supply: 400 V, 50 Hz
• Pumping motor: 7.50 kW
• Mixing motor: 3.00 kW
• Electrical cable: 5*4 mm² TTR, 20 m
• Protection fuse: 3*40 A
• Compressor: 0.90 kW, 250 l/min, 6 bar
• Hopper capacity: 140 l
• Length: 1950 mm
• Width: 850 mm
• Height: 1120 mm
• Transport height: 1120 mm
• Weight: 680 kg

Standard equipment

• Stator rotor set: 2L6
• Mortar hose: 40 bar, Ø 50 mm, 20 m, coupling
• Mortar hose: 40 bar, Ø 50 mm, 10 m, coupling
• Mortar hose: 40 bar, Ø 35 mm, 10 m, rotating coupling
• Mortar hose reduction: 50/35 mm
• Mortar hose gasket: Ø 35 mm, 2 piece
• Mortar hose gasket: Ø 35 mm, 2 piece
• Manometer: 60 bar
• Vibrating screen: 6 mm
• Air hose: Ø 10 mm, 20 m, geka coupling
• Air hose: Ø 10 mm, 11 m, geka coupling
• Air hose: Ø 10 mm, 10 m, geka coupling
• Air hose gasket: 10 mm, 2 piece
• Spray gun: Ø 35 mm, Nozzle 18 mm
• Nozzle: 18 mm, 1 piece
• Electrical cable: 5*4 mm² TTR, 20 m
• Sponge ball: Ø 50 mm, 2 piece
• Compressor: 0.90 kW, 250 l/min
• Control panel
• Coupling
• Cleaning rod
• Manual rotor dismantling apparatus
• Vehicle towing unit

Application Areas

It is suitable for use with factory made dry pre mixed pumpable mortars of the types listed below:

• Injection mortars
• Reinforcement and adhesive mortars
• Self spread screeds
• Cement mortars
• Lime mortars
• Lime - cement mortars
• Fango materials
• Insulation plasters
• Embedment mortars
• Exterior base coat plasters
• Wall mortars
• Premix mortars (Pre mixed bag)
• Insulation materials
• Tinted plasters
• Bonding plasters
• Flooring mortars
• Filling and bonding mortars
• Fiber mortars
• Suspension mortars
• Glass fiber mortars
